Room-Level Protection

Aerosol Generators

A total-flooding Condensed-Aerosol Generator that floods an entire room and terminates combustion at the molecular level — without removing the oxygen people need to breathe. Available as fixed room-level units or a portable, hand-deployed 5M model that first responders can place exactly where it's needed.

Data center server room fire — condensed-aerosol total-flooding suppression protects racks and electronics

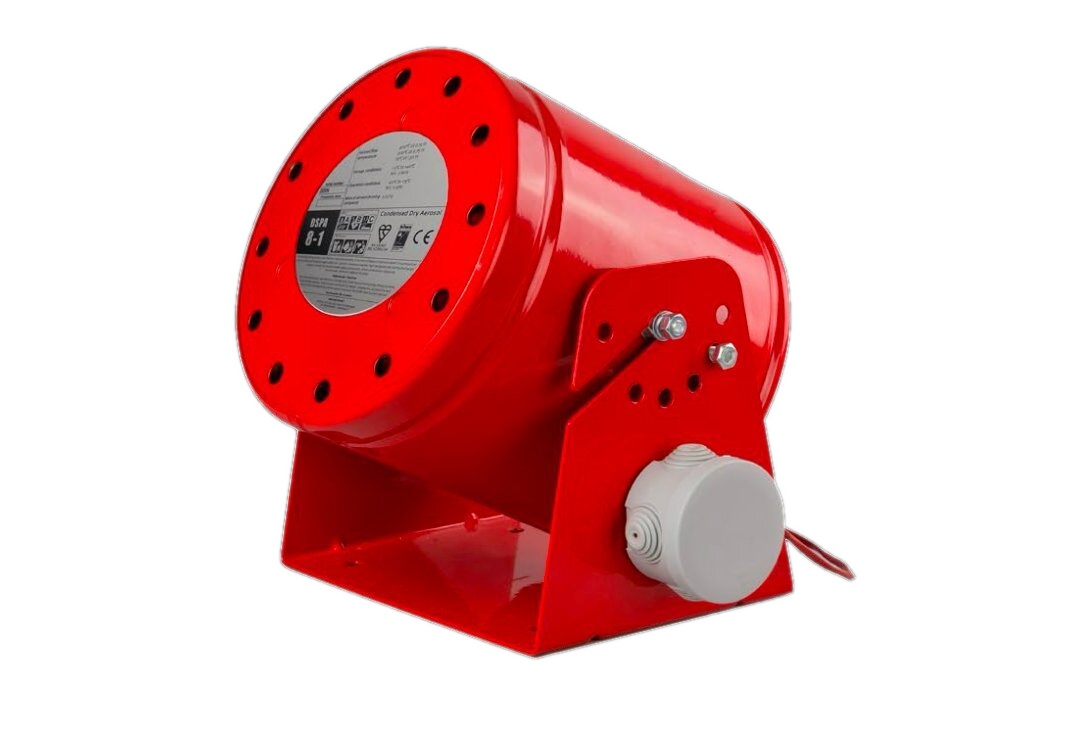

Fipron Canarias 8-1 condensed dry-aerosol fire suppression generator
Specifications
MethodMolecular chain termination
OxygenNot displaced — occupant-safe
Re-ignitionPrevented by radical scavengers
CoverageEntire protected space
StandardsEN 15276-1 · ISO 15779 · UL 2775
Class AClass BClass CClass EClass F

How it works

Rather than smothering a fire by displacing oxygen, the aerosol interrupts the chemical chain reaction of combustion. Oxygen levels stay intact and there is no overpressure, so with its 30-second pre-alarm the generator can protect occupied spaces as well as unmanned rooms. The agent is non-toxic, with zero ozone-depletion potential (ODP 0) and zero global-warming potential (GWP 0).

Where it fits

Whole-volume protection for enclosed technical spaces:

  • Server rooms and data halls
  • Technical and electrical rooms
  • Archives and record stores
  • Marine and transport compartments
  • Firefighter & first-responder knock-down — portable 5M, placed as needed

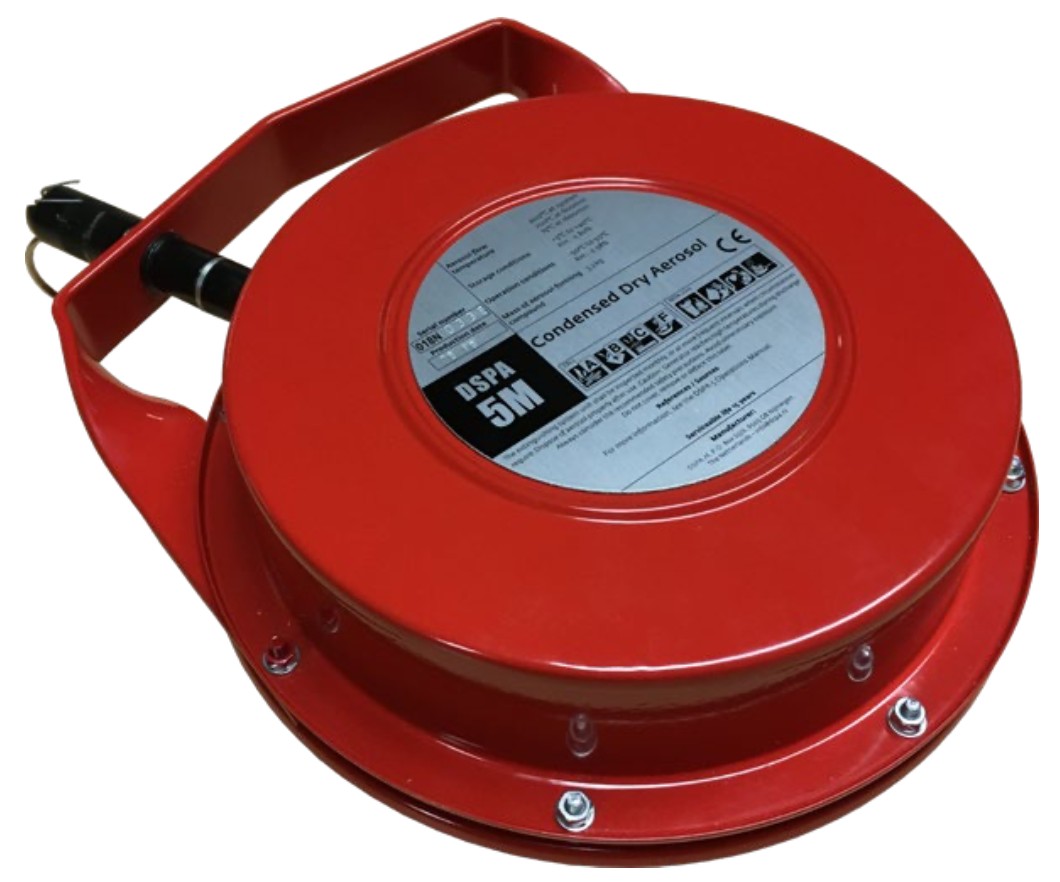

Fipron Canarias 5M portable hand-deployed condensed dry-aerosol fire suppression generator for firefighters and marine use
Portable Model — 5M

Grab-and-deploy portable generator

Alongside the fixed room-level units, the 5M is a portable, hand-deployed generator that firefighters and first responders carry to the fire and place exactly where it is needed. It is non-pressurized and triggered manually with a screw-in starter (pin or cord); once activated it floods the compartment with condensed aerosol to knock the fire down fast. Purpose-built for marine and shipboard firefighting, it works at every stage of a fire and is especially effective on fully developed fires.

Model5M — portable / marine
Part number100018
Volume coverageUp to 150 m³
Discharge time35 sec
ActivationManual screw-in starter (pin or cord)
Dimensions278 × 220 × 102.6 mm
Weight5500 g (3300 g compound)
Operating range-40 °C to +75 °C · up to 95% RH
